3.4 DRNI配置

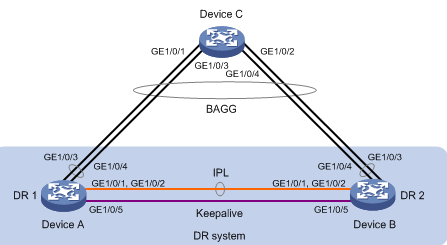

组网图：



3.4.1 配置步骤

(1)      配置Device A

# 系统配置。

<DeviceA> system-view

[DeviceA] drni system-mac 1-1-1        /配置drni的MAC地址

[DeviceA] drni system-number 1         /配置drni系统的编号

[DeviceA] drni system-priority 123     /配置drni的优先级

# 配置Keepalive报文的目的IP地址和源IP地址。

[DeviceA] drni keepalive ip destination 1.1.1.1 source 1.1.1.2

# 配置端口GigabitEthernet1/0/5工作在三层模式，并配置IP地址为Keepalive报文的源IP地址。

[DeviceA] interface gigabitethernet 1/0/5

[DeviceA-GigabitEthernet1/0/5] port link-mode route

[DeviceA-GigabitEthernet1/0/5] ip address 1.1.1.2 24

[DeviceA-GigabitEthernet1/0/5] quit

# 配置Keepalive链路接口为保留接口。

[DeviceA] drni mad exclude interface gigabitethernet 1/0/5

# 创建二层聚合接口3，并配置该接口为动态聚合模式。

[DeviceA] interface bridge-aggregation 3

[DeviceA-Bridge-Aggregation3] link-aggregation mode dynamic

[DeviceA-Bridge-Aggregation3] quit

# 分别将端口GigabitEthernet1/0/1和GigabitEthernet1/0/2加入到聚合组3中。

[DeviceA] interface gigabitethernet 1/0/1

[DeviceA-GigabitEthernet1/0/1] port link-aggregation group 3

[DeviceA-GigabitEthernet1/0/1] quit

[DeviceA] interface gigabitethernet 1/0/2

[DeviceA-GigabitEthernet1/0/2] port link-aggregation group 3

[DeviceA-GigabitEthernet1/0/2] quit

# 将二层聚合接口3配置为IPP口。

[DeviceA] interface bridge-aggregation 3

[DeviceA-Bridge-Aggregation3] port drni intra-portal-port 1

[DeviceA-Bridge-Aggregation3] quit

# 创建二层聚合接口4，并配置该接口为动态聚合模式。

[DeviceA] interface bridge-aggregation 4

[DeviceA-Bridge-Aggregation4] link-aggregation mode dynamic

[DeviceA-Bridge-Aggregation4] quit

# 分别将端口GigabitEthernet1/0/3和GigabitEthernet1/0/4加入到聚合组4中。

[DeviceA] interface gigabitethernet 1/0/3

[DeviceA-GigabitEthernet1/0/3] port link-aggregation group 4

[DeviceA-GigabitEthernet1/0/3] quit

[DeviceA] interface gigabitethernet 1/0/4

[DeviceA-GigabitEthernet1/0/4] port link-aggregation group 4

[DeviceA-GigabitEthernet1/0/4] quit

# 将二层聚合接口4加入分布式聚合组4中。

[DeviceA] interface bridge-aggregation 4

[DeviceA-Bridge-Aggregation4] port drni group 4

[DeviceA-Bridge-Aggregation4] quit

(2)      配置Device B

# 系统配置。

<DeviceB> system-view

[DeviceB] drni system-mac 1-1-1

[DeviceB] drni system-number 2

[DeviceB] drni system-priority 123

# 配置Keepalive报文的目的IP地址和源IP地址。

[DeviceB] drni keepalive ip destination 1.1.1.2 source 1.1.1.1

# 配置端口GigabitEthernet1/0/5工作在三层模式，并配置IP地址为Keepalive报文的源IP地址。

[DeviceB] interface gigabitethernet 1/0/5

[DeviceB-GigabitEthernet1/0/5] port link-mode route

[DeviceB-GigabitEthernet1/0/5] ip address 1.1.1.1 24

[DeviceB-GigabitEthernet1/0/5] quit

# 配置Keepalive链路接口为保留接口。

[DeviceB] drni mad exclude interface gigabitethernet 1/0/5

# 创建二层聚合接口3，并配置该接口为动态聚合模式。

[DeviceB] interface bridge-aggregation 3

[DeviceB-Bridge-Aggregation3] link-aggregation mode dynamic

[DeviceB-Bridge-Aggregation3] quit

# 分别将端口GigabitEthernet1/0/1和GigabitEthernet1/0/2加入到聚合组3中。

[DeviceB] interface gigabitethernet 1/0/1

[DeviceB-GigabitEthernet1/0/1] port link-aggregation group 3

[DeviceB-GigabitEthernet1/0/1] quit

[DeviceB] interface gigabitethernet 1/0/2

[DeviceB-GigabitEthernet1/0/2] port link-aggregation group 3

[DeviceB-GigabitEthernet1/0/2] quit

# 将二层聚合接口3配置为IPP口。

[DeviceB] interface bridge-aggregation 3

[DeviceB-Bridge-Aggregation3] port drni intra-portal-port 1

[DeviceB-Bridge-Aggregation3] quit

# 创建二层聚合接口4，并配置该接口为动态聚合模式。

[DeviceB] interface bridge-aggregation 4

[DeviceB-Bridge-Aggregation4] link-aggregation mode dynamic

[DeviceB-Bridge-Aggregation4] quit

# 分别将端口GigabitEthernet1/0/3和GigabitEthernet1/0/4加入到聚合组4中。

[DeviceB] interface gigabitethernet 1/0/3

[DeviceB-GigabitEthernet1/0/3] port link-aggregation group 4

[DeviceB-GigabitEthernet1/0/3] quit

[DeviceB] interface gigabitethernet 1/0/4

[DeviceB-GigabitEthernet1/0/4] port link-aggregation group 4

[DeviceB-GigabitEthernet1/0/4] quit

# 将二层聚合接口4加入分布式聚合组4中。

[DeviceB] interface bridge-aggregation 4

[DeviceB-Bridge-Aggregation4] port drni group 4

[DeviceB-Bridge-Aggregation4] quit

(3)      配置Device C

# 创建二层聚合接口4，并配置该接口为动态聚合模式。

<DeviceC> system-view

[DeviceC] interface bridge-aggregation 4

[DeviceC-Bridge-Aggregation4] link-aggregation mode dynamic

[DeviceC-Bridge-Aggregation4] quit

# 分别将端口GigabitEthernet1/0/1～GigabitEthernet1/0/4加入到聚合组4中。

[DeviceC] interface range gigabitethernet 1/0/1 to gigabitethernet 1/0/4

[DeviceC-if-range] port link-aggregation group 4

[DeviceC-if-range] quit

3.4.2 验证配置

# 查看Device A上分布式聚合的Keepalive报文信息。

[DeviceA] display drni keepalive

Neighbor keepalive link status: Up

Neighbor is alive for: 104 sec, 16 ms

Last keepalive packet sending status: Successful

Last keepalive packet sending time: 2017/03/09 10:12:09 620 ms

Last keepalive packet receiving status: Successful

Last keepalive packet receiving time: 2017/03/09 10:12:09 707 ms

Distributed relay keepalive parameters:

Destination IP address: 1.1.1.1

Source IP address: 1.1.1.2

Keepalive UDP port : 6400

Keepalive VPN name : N/A

Keepalive interval : 1000 ms

Keepalive timeout  : 5 sec

Keepalive hold time: 3 sec

以上信息表明Device A和Device B设备间无故障。

# 查看Device A上IPP口和DR口的摘要信息和详细信息。

[DeviceA] display drni summary

Global consistency check           : SUCCESS

Inconsistent type 1 global settings:

IPP        IPP ID        State

BAGG3       1             UP

DR interface DR group ID State  Check result  Type 1 inconsistency

BAGG4        4         UP      SUCCESS      /UP代表成功

[DeviceA] display drni verbose

Flags: A -- Home_Gateway, B -- Neighbor_Gateway, C -- Other_Gateway,

       D -- IPP_Activity, E -- DRCP_Timeout, F -- Gateway_Sync,

       G -- Port_Sync, H -- Expired

IPP/IPP ID: BAGG3/1

State: UP

Local state/Peer state: ABDFG/ABDFG

Local Selected ports Index: 1, 2

Peer Selected ports Index: 1, 2



DR interface/DR group ID: BAGG4/4

State: UP

Local state/Peer state: ABDFG/ABDFG

Local Selected ports Index: 16387, 16388

Peer Selected ports Index: 32771, 32772

以上信息表明Device A和Device B成功组成分布式聚合系统。

# 查看Device C上聚合组4的详细信息。
